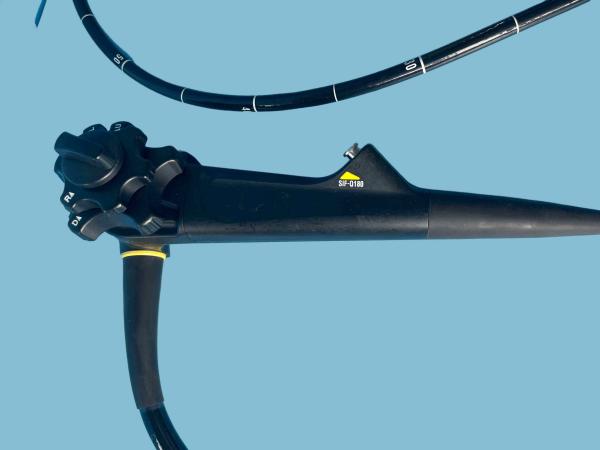

SIF-Q180 High Definition Video Flexible Enteroscope With 140 Degrees Field Of View

1. Function Introduction:

1. used in gastrointestinal procedures to examine and diagnose conditions in the small intestine
2. provide clear and detailed visualization of the small intestine.
3. employs advanced imaging technologies, including Narrow Band Imaging (NBI)

2. Parameters Of Olympus SIF-Q180 Video Enteroscope

1. Optical System
Field of view :140°
Depth of field: 3 to 100 mm

2. Distal End
Outer diameter 9.2 mm

3. Insertion Tube
Outer diameter 9.2 mm

4. Bending Section
Angulation range:
Up 180°, Down 180°,

Right 160°, Left 160°

5. Total Length: 2345 mm

Hong Kong FY-Medical Trading Co., Ltd., serving in the field of medical endoscope for 10 years, focusing on the research and development, production, sales, maintenance, renovation and other business of medical endoscope equipment and its accessories. We provide one-stop service for endoscopes, aiming to provide you with more cost-effective and high-quality solutions.

Major Structure of Flexible Endoscope

Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.

A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.

Four Major Flexible Endoscope Structures

Control body
Insertion tube
Bending section/distal tip
Light guide connector
